3215-25"-11A2

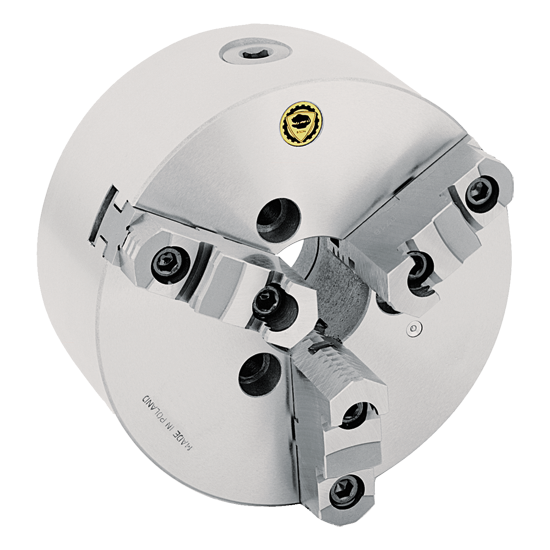

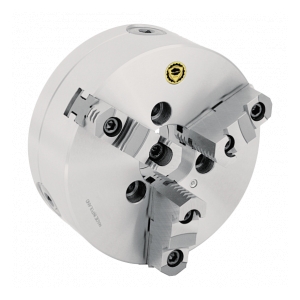

3-Jaw Self-Centering Scroll Chuck, Type "A" Direct Mount

Mfr Part Number: 353215461700
Part number: 7-801-2511
Size: 630 mm (25")
Mounting Type: Type "A" Mounting
Taper Size: 11
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Cast Iron
Precision Class: Standard Accuracy Chuck
Through Hole: YES
Through Hole Size [mm]: 190
Unit Of Measure: EA
Find Distributor

Item page Specs page
Stud Bolt
Safety Wrench
Pinion
Hard Top Jaws
Hard Master Jaws
Scroll Plate
