3545-125-4 (5'')

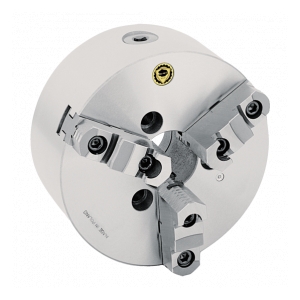

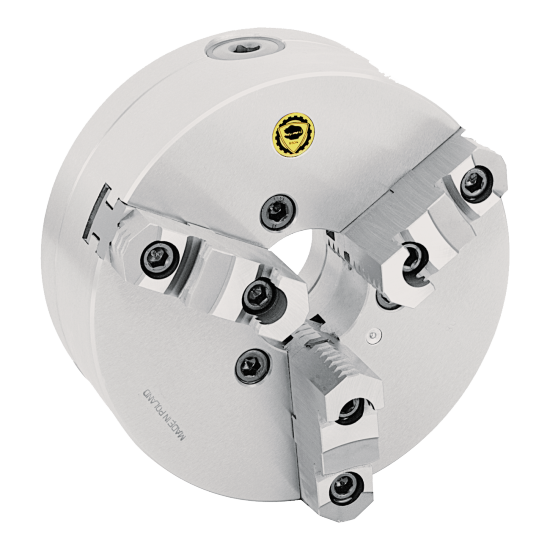

3-Jaw Self-Centering Scroll Chuck, CAMLOCK Direct Mount

Mfr Part Number: 353545580000
Part number: 7-823-0534
Size: 125 mm (5")
Mounting Type: CAMLOCK Mounting - Type "D"
Taper Size: 4
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Steel
Precision Class: Standard Accuracy Chuck
Through Hole: YES
Through Hole Size [mm]: 35.5
Unit Of Measure: EA
