3545-8"-6

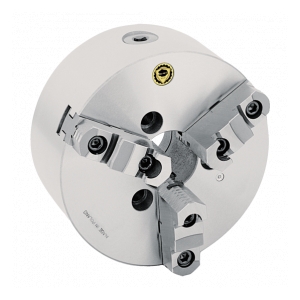

3-Jaw Self-Centering Scroll Chuck, CAMLOCK Direct Mount

Mfr Part Number: 353545640300
Part number: 7-823-0836
Size: 200 mm (8")
Mounting Type: CAMLOCK Mounting - Type "D"
Taper Size: 6
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Steel
Precision Class: Standard Accuracy Chuck
Through Hole: YES
Through Hole Size [mm]: 55
Unit Of Measure: EA
Find Distributor

Item page Specs page
Stud For CAMLOCK
Safety Wrench
Pinion
Locking Half-Ring
Hard Top Jaws
Hard Master Jaws
Sleeve Bearing
Scroll Plate
