3865-20"

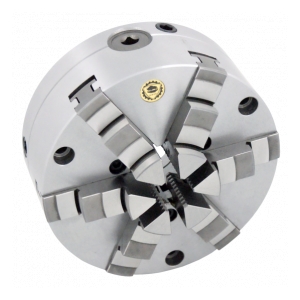

Self-Centering Chuck With Fine Adjustment

Mfr Part Number: 353865090000
Part number: 7-868-2000
Size: 500 mm (20")
Mounting Type: Plain Back - Front Mounting
Number Of Jaws: 6
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Steel
Precision Class: Precision Chuck with Fine Adjustment
Through Hole: YES
Through Hole Size [mm]: 190
Unit Of Measure: EA
Find Distributor

Item page Specs page
Pinion
Locking Half-Ring

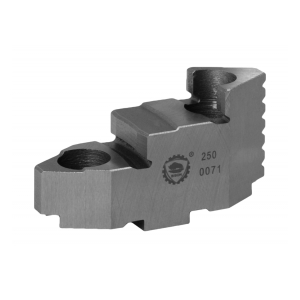

Hard Top Jaws
Hard Master Jaws
Sleeve Bearing
Scroll Plate
SET-TRU Screw
