3245-10"-8

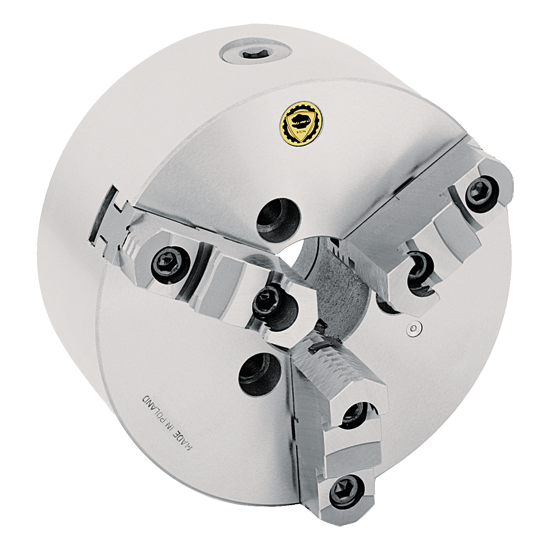

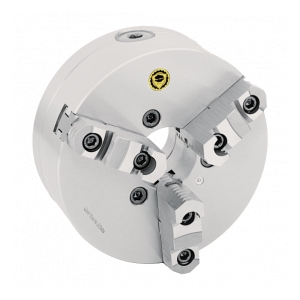

3-Jaw Self-Centering Scroll Chuck, CAMLOCK Direct Mount

Mfr Part Number: 353245340100
Part number: 7-803-1038
Size: 250 mm (10")
Mounting Type: CAMLOCK Mounting - Type "D"
Taper Size: 8
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Cast Iron
Precision Class: Standard Accuracy Chuck
Through Hole: YES
Through Hole Size [mm]: 76
Unit Of Measure: EA
Find Distributor

Item page Specs page
Stud Bolt
Stud For CAMLOCK
Safety Wrench
Pinion
Hard Top Jaws
Hard Master Jaws
Scroll Plate
