3245-6"-3

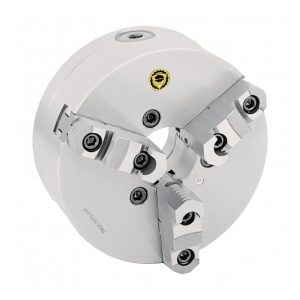

3-Jaw Self-Centering Scroll Chuck, CAMLOCK Direct Mount

Mfr Part Number: 353245230900
Part number: 7-803-0633
Size: 160 mm (6")
Mounting Type: CAMLOCK Mounting - Type "D"
Taper Size: 3
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Cast Iron
Precision Class: Standard Accuracy Chuck
Through Hole: YES
Through Hole Size [mm]: 42
Unit Of Measure: EA
Find Distributor

Item page Specs page
Stud Bolt
Stud For CAMLOCK
Safety Wrench
Pinion
Hard Top Jaws
Hard Master Jaws
Scroll Plate
